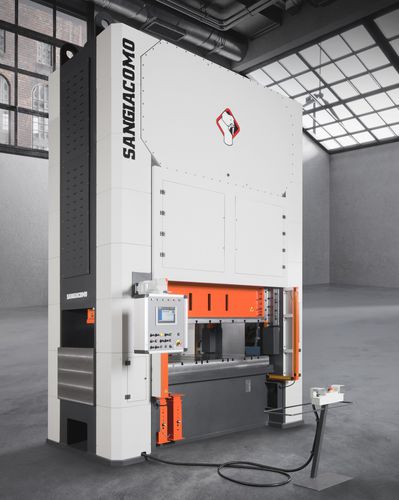

Mechanical press DM-DB
stampingdeep drawingdrawing

mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
Add to favorites
Compare this product


Characteristics

Operation
mechanical
Function
stamping, deep drawing, drawing, punching, blanking, die-cutting, for molding, trimming, perforating
Structure
4-column, straight-side, eccentric, double connecting rod
Control
automatic, PLC-controlled, NC
Applications
for production
Force

Max.: 5,000 kN

Min.: 1,250 kN

Rate (strokes/min)

Max.: 150 p/min

Min.: 20 p/min

Stroke

Max.: 300 mm
(11.811 in)

Min.: 14 mm
(0.551 in)

Table width

Max.: 2,550 mm
(100 in)

Min.: 1,300 mm
(51 in)

Table length

Max.: 1,400 mm
(55 in)

Min.: 800 mm
(31 in)

Description

STRAIGHT-SIDE presses thanks to a solid frame with four columns or uprights ensures a parallel deflection. This involves a significant reduction of tool wear which consequently results in a superior quality of process and parts. Moreover, the ram is fully guided for the entire stroke, so for the entire forming / stamping process. The production range includes presses from 50 to 500 ton with single or double connecting rod, direct drive, back geared and other kinematic motions.
