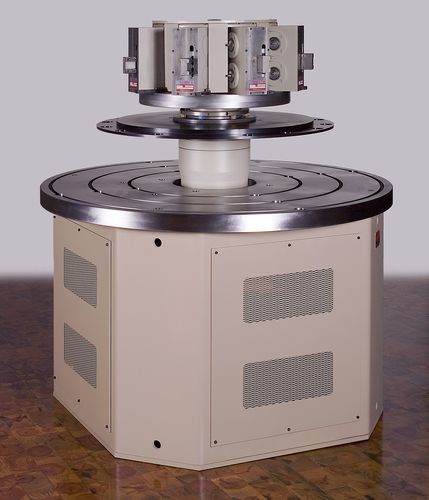

Automatic assembly machine BH series

for industrial applicationscam-operated

Sankyo's Rotary Base Assembly Machine is driven by Sankyo's center-column-type indexing drive. It is the apex of precision and high-speed rotary base machines. It is available in three types. Each model features a solid-piece frame, base table and index table. A continuous shaft is also mounted to the output shaft and synchronized with the index table. The continuous shaft on model BH series can be used to drive various peripheral equipment. On model PM14, a cam is attached directly to the continuous shaft and translated into a pick and place motion. Each model comes complete with motor, standard schematic circuit and torque overload devices. This is particularly suitable for driving automated assembly equipment, processing machines, and other applications that require precision performance. Examples include machines for precision parts, electronic components and small parts.
