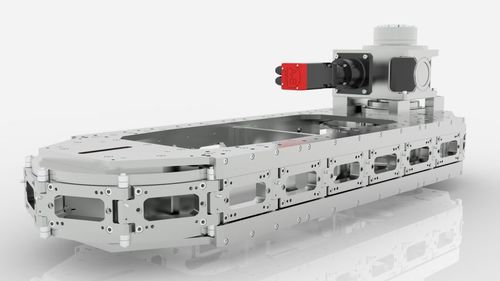

Link conveyor IC series

chainhorizontalelectric drive

High Speed Up To 120 Cycles Per Minute High Accuracy ±0.1 mm (±0.0039”) Feed Pitch Accuracy Zero Backlash All Links Are Preloaded in X, Y, and Z Axis for ZERO Backlash Load Capacity Each Chain Link has 4500 Newtons (1011 lbf) of Static Force Capacity The IC series precision link conveyor is an excellent choice for a robust, accurate linear assembly chassis. Precision machined steel links are accurately advanced with either a fixed motion cam indexer or a servo driven zero-backlash RollerDrive®. Our robust steel conveyor frame preloads the links in all directions. An innovative chain tensioning system and all needle bearing design extends the service life of the conveyor by reducing vibration and eliminating chain stretch. Conveyor lengths are available in 480mm (18.89”) increments. • Linear inline assembly when accurate positioning’s required • Reconfigurable lengths to match product size or increased production • Serve as the main chassis when multiple components are assembled
