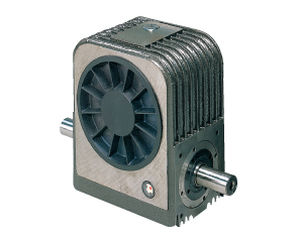

Worm gear reducer coaxial100 - 200 Nm50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- worm
- Shaft orientation
- coaxial
- Torque
- 100 - 200 Nm, 50 - 100 Nm
- Configuration
- compact
- Performance
- low-backlash, precision
- Applications
- for shaft
- Other characteristics
- mounted
- Rotational speed
1,800 rpm
(11,309.73 rad.min-1)- Power
Max.: 45 W
(0.06 hp)Min.: 12 W
(0.02 hp)
Description
The R Series is a precision worm gear reducer developed specifically for driving our SANDEX units. It is designed to be mounted directly to the input shaft for a compact, accurate, lossless transfer of power. Adjustable preload minimizes backlash for smooth, even rotation. Sankyo reducers are fitted with responsive, durable clutch and brake units for frequent start/stop operation. These units also use the universally accepted Newman worm to ensure the best performance at all times.
BACK TO TOP
Features
Wide Product Lineup
Reduction ratio: 5 to 50, Maximum input speed: 1800 rpm
Compact
Designed to mount directly on the input shaft of a SANDEX for minimal footprint.
Optional Clutch and Brake Units
All reducers can be fitted with responsive, durable clutch and brake units.
Various Mounting Configurations Available
In addition to the different mounting positions for the housing, the mounting direction of the clutch and brake unit can also be specified.
