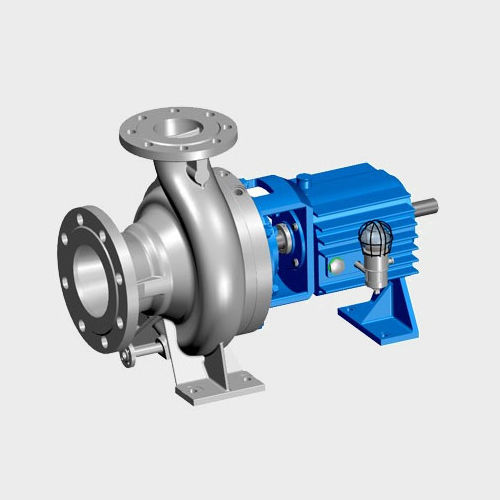

Centrifugal pump ASP5030

wateroilair

ASP5030, ASP5040 series chemical process pump is a pump on the digestion and absorption of advanced domestic and foreign technology, based on the according to API610 (eighth edition) "heavy oil chemistry and natural gas industry in centrifugal pump and API682" centrifugal pump and rotary pump shaft seal system "specifications for design of horizontal radial split series single stage single suction pump. ASP5030, ASP5040 series chemical process pump is suitable for power supply of 50HZ, and also for 60HZ. The pump execution standard conforms to ISO, API, GB, ASTM, JIS standard. The material of overflow components can be selected according to the conveying medium. Range of application • refinery, petrochemical industry, coal processing industry and cryogenic engineering • chemical industry, paper making, pulp industry, sugar industry and general process industry • water supply plant and desalination plant • heating and air conditioning systems Power plants, • environmental protection works • ships and Marine engineering, etc Structural characteristics • ASP5030 series pump body is supported by feet, and ASP5040 series pump body is supported by the center. • the impeller adopts balance hole and wear ring balance axial force. • packing letters have cooling or heating tube connections The shaft seal is sealed by packing and can also be sealed with single end or double ends, with cooling, flushing or sealing fluid system. • the pump body, pump cover, intermediate support and seal pressure cover are all used with taper pipe thread, which increases the reliability of the pipe diameter seal.
