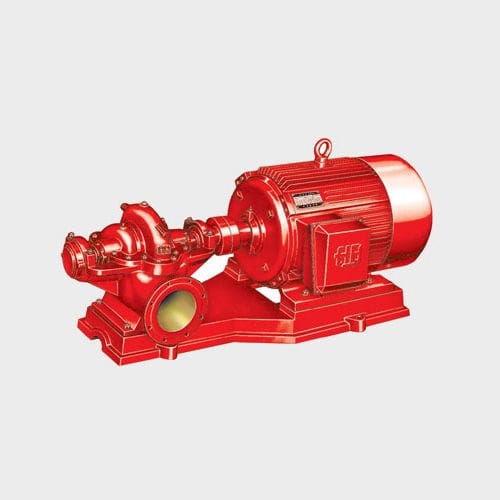

Water pump XBD-S

with electric motorcentrifugalstationary

XBD-S type single stage double suction,horizontal firefighting pump set is newly developed according to market needs.Its executive standard is GB6245《Fire pump》,and the most advanced hydraulic model is applied,combining with the characteristics of double suction pump.It is high efficient and energy-saving,reliable performance,easy to install and use.It is used to transport clean water or liquid with physical and chemical property similar to clean water.Max temperature of liquid can not exceed 80℃. Applications It has been widely used in fire fighting and living water supply of industry the residence buildings. Structural Characteristics Both inlet and outlet of XBD-S type pump are below the pump’s axial central line.They are perpendicular with axial line and horizontally placed in the middle of pump casing.There is no need to remove inlet,discharge pipeline and electric motor(or some other motors).The pump rotates clockwise from the direction of the coupling.The pump which rotates anticlockwise can also be manufactured according to the requirements,but it should be specified when ordering. XBD-S type pump is mainly made up of pump casing（1）,pump cover（2）,impeller（3）,shaft（4） and double suction seal ring（5）,shaft sleeve（6） and bearing（15）,etc.Except that the material for the bearing is first grade carbon steel,the remained are all made of cast steel(See the structural drawing of pump).
