Water pump XBD-DL

for chemicalswith electric motorself-priming

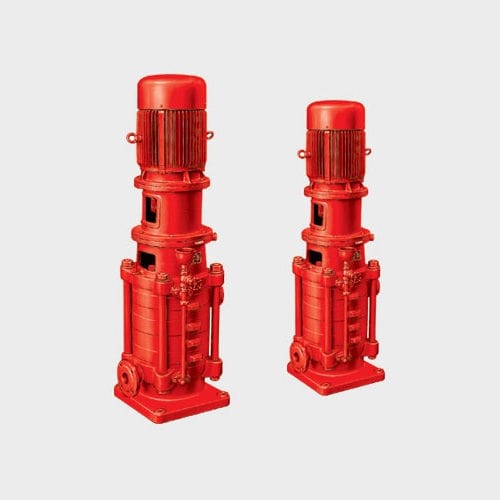

XBD- DL series fire pump set is vertical single suction multistage sectional type centrifugal pump,which is developed according to market needs.The product applies the most advanced hydraulic model,combines with the characteristics of vertical multistage pump, according to International standard ISO2858 and newly-issued national standard GB6245-2006《Performance requirements and test methods for fire pumps》.The product is high efficient and energy-saving,reliable performance,easy to install and use.It transports water and liquid with physical and chemical property similar to clean water.Temperature of liquid can not exceed 80℃ at most. Application Area It has been widely used in fire fighting and living water supply of industry the residence buildings. Structural Characteristics XBD- DL type fire pump is vertical multistage sectional structure.Its suction is placed at the inlet section,and its discharge is placed at outlet section.And they are both horizontally placed.Head can be needed by increasing or reducing pump stage.According to installation using requirements,outlet section can be rotated 4 directions,namely,0°、90°、180°、270°,to adjust the installation position of discharge.
