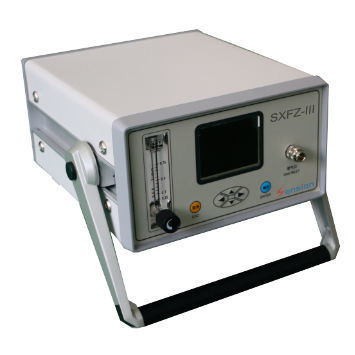

Gas analyzer SXFZ-III

processtracehumidity

SXFZ-III is five-in-one SF6 gas analyzer applied to measure dew point, purity and decomposition products of SF6 gas, which can detect three items by one testing,to save 2/3 of gas usage. Features ♦ Light weight, portable. ♦ Fast measuring and gas conserving: after startup into the measuring state, the measuring time of dew point is about 5min; the measuring time of SF6 purity and SF6 decomposer is about 2min ♦ Auto locking: Adopts high quality auto lock joint made in German, no gas leakage, safe and reliable. ♦ Data storing: 200 groups’ data storage. ♦ Curve function: Large screen curve display the process of dew point measurement. ♦ Display clear: LCD screen, to display dew point, trace moisture (ppm), SF6 purity, SO2, H2S, CO and HF(option) content, environmental temperature, environmental humidity, time/date, battery capacity and etc. ♦ Build-in battery: 4Ah rechargeable lithium battery, continuously working 10 hours after one charging. Specifications Dew Point Measuring Range :－60 ℃～+20 ℃ Measuring Precision : ±1℃（－60℃～＋20℃） Measuring Duration（＋20℃） 63% need 5S, 90% need 45S (－60℃～＋20℃) 63% need 10S，90% need 240S (+20℃～－60℃) Purity Measuring range：0%～100% Accuracy：±0.5% Measuring time：< 2min H2S Measuring range：0～100ppm The minimum detectable amount：≤0.1ppm Accuracy：±0.5% Stability：0～100ppm Repeatability：≤2% SO2 Measuring range：0～100ppm The minimum detectable amount：≤0.1ppm Accuracy：±0.5% Stability：0～100ppm Repeatability：≤2% HF(optional) Measuring range：0～20ppm The minimum detectable amount：≤0.01ppm Accuracy：±0.5% Stability：0～20ppm Repeatability：≤2% CO Measuring range：0～1000ppm The minimum detectable amount：≤1ppm Accuracy：±0.5% Stability：0～1000ppm
