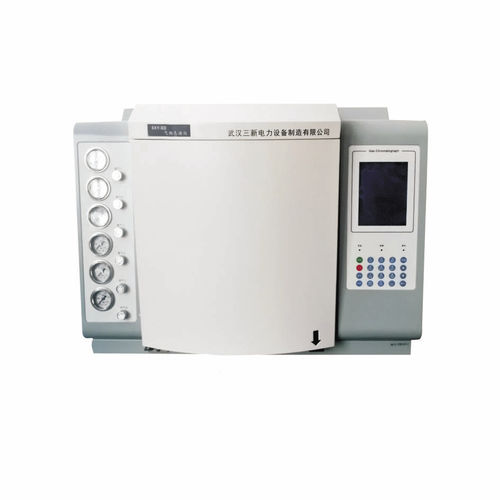

Gas analyzer SXQS

H2for insulating oilprocess

Transformer oil sample analysis is a useful, predictive, maintenance tool for determining transformer health. Along with the oil sample quality tests, performing a dissolved gas analysis (DGA) of the insulating oil is useful in evaluating transformer health. The breakdown of electrical insulating materials and related components inside a transformer generates gases within the transformer. The identity of the gases being generated can be very useful information in any preventive maintenance program. SXQS Power system Dedicated Insulation Oil and Gas Chromatography Analyzer manual runs by computer automatic control, all-keyboard operation and large-screen liquid crystal display according to the requirements of power system dissolved gas component determination in insulation oil (chromatography),and is characterized by high-precision temperature control, stable and reliable performance, high sensitivity, good reproducibility and so on. The analyzer adopts double-pillar parallel shunt system, equipped with TCD, double FID and methane conversion oven, and could achieve total analysis of nine components (H2,O2,N2,CH4,C2H2,C2H4,C2H6,CO, CO2)of dissolved gas in insulation oil by one time. Features SXQS adopts dissolved gas chromatorgraphy analysis system, runs by computer automatic control, all-keyboard operation and large LCDscreen according to the requirements of power system Dissolved Gas Component Determination In Insulation Oil (chromatography), and is characterized by high-precision temperature control, stable and reliable performance, high sensitivity, good reproducibility etc.
