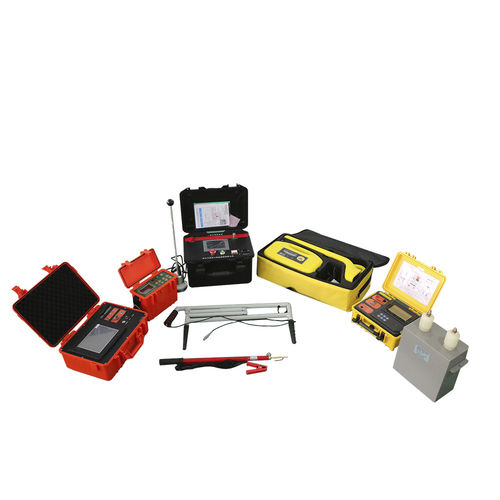

Cable fault location fault location system ST-330B+

The complete set of instruments can solve all the faults of power cables below 35kV. The complete set is composed of four units: 1. Fault location unit: cable fault location host + multiple pulse controller The color LCD touch screen is adopted, which is simple to operate and easy to read the waveform. At the same time, the ranging system can automatically locate the distance of the fault point, and the fault location is simple and easy. 2. Tracking and identification unit: fully digital multi-function cable detector The path search adopts all-digital electromagnetic induction technology, which can easily solve the running or non-operating cable direction and identification problems, especially the problem of metal dead ground fault that could not be solved in the past. 3. Fault fixed-point unit: intelligent locator The precision locator equipped with the system has sound and magnetic waveform display, strength indicator; it can prompt the distance and path of the fault and many other functions. 4. High-voltage signal unit: ultra-light high-frequency and high-voltage signal generator It is the energy supply part for pre-positioning and precise positioning of the cable fault, and provides high-voltage and high-energy voltage pulses for the cable. It has the advantages of simple wiring, small size, light weight, and convenient movement.
