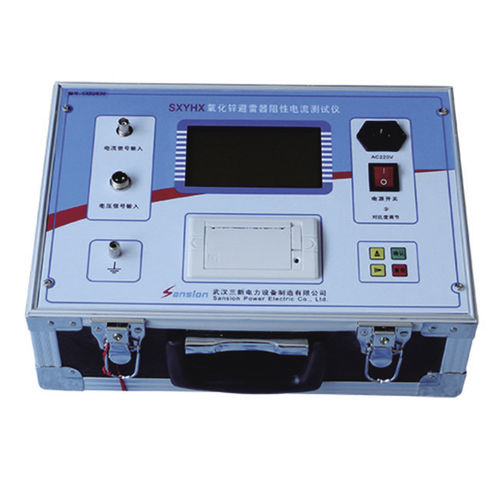

Leakage current tester SXYZ-I

lightning arrestorportablewith LCD screen

SXYZ-I Metal Oxide Arrester Tester is applied to measure and analyze the leakage current of MOA. Main purpose is to measure the resistive current to check the health of Metal Oxide Arresters, It can detect dangerous problems inside the arresters such as insulation moisture and valve plate aging. Features ♦ Advanced microcomputer controlling centre, safe and reliable. ♦ Adopts special weak signal sensor, to isolate against test MOA. ♦ Large LCD screen. ♦ To analyze and save the first 20 times test results, easy to operate. ♦ Built-in printer. Specifications ♦ Measuring parameter and range: Test voltage：0-500kV Triple harmonic voltage: 0-500kV Full current (peak value)：0-20mA Triple harmonic current: 0-20mA Resistive current (peak value)：0-20mA Capacitive current (peak value)：0-20mA MOA power consumption：0-99W Voltage and full current waveform also can be displayed. ♦ Measuring accuracy： Test voltage: ±5% Full current: ±5% Resistive current: ±5% Capacitive current: ±10% Arrestor power consumption: ±5% ♦ Input signal: Voltage: PT LV side AC 5-200V Current: AC 0-10mA ♦ AC power source：AC 200V ±10%，50Hz ±2%
