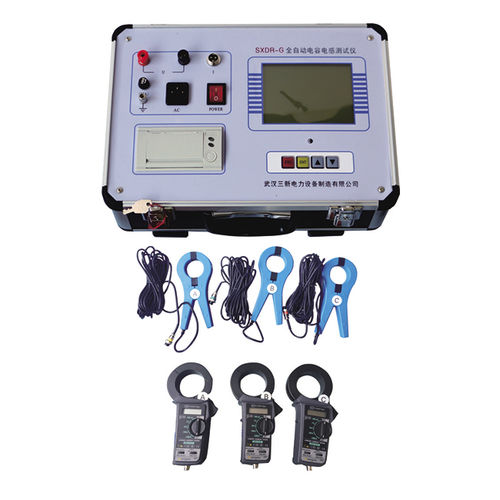

Capacitance tester SXDR-G

capacitorportableautomatic

SXDR-G Automatic Capacitance Inductance Tester is designed to on site detect on capacitance of substation capacitor. Features ♦ Portable, easy to operate. ♦ High measuring accuracy. ♦ To detect capacitor without dismounting. ♦ Can measure inductance of reactor. ♦ Three phases clamps or single clamp is optional. Specifications ♦ Capacitance: Measuring range: 0.5μF ～ 2,000μF Power measuring range: 5 ～ 20,000kvar Precision:±1.5%；Read ±0.1μF Resolution: 0 ～ 1.999μF ±1.0%rdG 0 ～ 19.99μF ±1.0%rdG 0 ～ 199.9μF ±1.0%rdG 0 ～ 1999μF ±1.0%rdG; ♦ Current: Current measuring range：0～199.9mA 0～1.999A 0～19.99A 0～199.9A 0～1000A Precision: ±1.5%； ♦ Inductance: Inductance measuring range: Small inductance 1mH～10mH Large inductance 4 mH～10H Precision:±(3% read±0.1mH) Resolution: 0.01mH ♦ Power supply: Rated voltage: power frequency 220V±10% Rated frequency: 50Hz Rated output: 22V/500VA ♦ Working condition: Environmental temperature: 0℃ ～ +40℃ Relative humidity: ≤90% ♦ LCD screen, build-in thermal printer.
