Electric forklift HEF-20
ride-ontransportfor warehouse

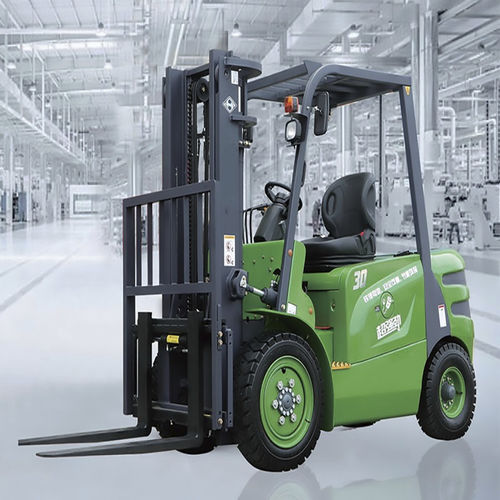

Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse
Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse
Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse - image - 2
Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse - image - 3
Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse - image - 4
Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse - image - 5
Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse - image - 6
Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse - image - 7
Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse - image - 8
Electric forklift - HEF-20 - SANTSAI MACHIENRY - ride-on / transport / for warehouse - image - 9
Add to favorites
Compare this product


Characteristics

Motor type
electric
Operator
ride-on
Applications
transport, for warehouse, order-picking
Other characteristics
4-wheel, compact, heavy-duty, for corrosive environments
Carrying capacity

2,000 kg
(4,409.2 lb)

Lifting height

4,500 mm
(177.17 in)

Overall width

1,150 mm
(45.3 in)

Overall length

2,380 mm
(93.7 in)

Load center distance

500 mm
(19.7 in)

Weight without load

4,300 kg
(9,479.9 lb)

Track width front

970 mm
(38.2 in)

Track width rear

950 mm
(37.4 in)

Height of mast when lowered

2,050 mm
(80.7 in)

Overall height with mast raised

5,450 mm
(214.6 in)

Ground clearance under mast with load

105 mm
(4.1 in)

Turning circle radius

2,120 mm
(83.5 in)

Travel speed

13 km/h
(8.1 mph)

Lifting speed

230 mm/s

Gradeability

16 %

Rated output

11 kW
(15 hp)

Description

1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function. 2. High quality pump station makes hand-hydraulic lift table lifts and fall very stable. 3. Up to standard CE What are the functions of Electric Lift Platform? Raise or lower heavy material to desired position. Meanwhile,Avoid physical harm. Widely used in automotive, container, mold manufacturing, production lines, chemical canning, repair industry etc. Ideal for Many Applications The simplicity and compact design of these carts make them suitable for lifting and transporting loads, order-picking, die handling and assembly operations. An ergonomic solution to lifting, positioning and transporting. Reliable & Stable Overload valve design prevents damage from misuse of the truck and reduces the overall maintenance cost. Each cylinder is equipped with an internal hydraulic velocity fuse. The heavy duty steel construction is engineered to hold up in harsh environments. Two rigid front casters and two rear swivel (with brake) increase maneuverability in tight areas. Safety & Comfort Safety stops minimize the risk of an empty deck from lowering while performing maintenance. Diminishes the amount of worker bending and lifting, which reduces risk of injury. Raise and lower the deck with mini pain and strain.

VIDEO
