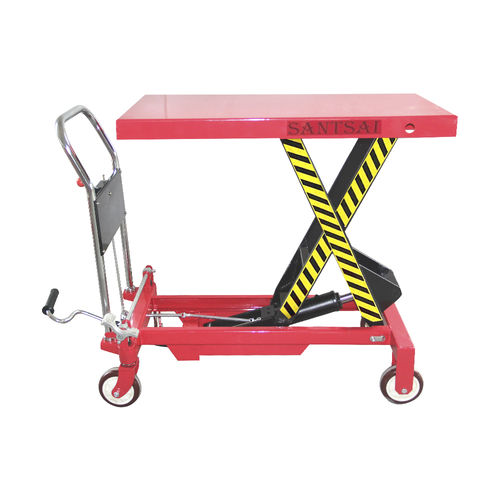

Scissor lift table SPT50D

hydraulicfoot-operatedmobile

Hydraulic Manual Scissor Lift Table Cart 1100 LBS Max. Height 35 Inch 1. 1100 lbs loading capacity 2. Lifting height (min/max): 11" - 35.4" 3. Table size: 32" length 20" width 4. Foot pump, manual push, easy-release lever to lower 5. PU wheels, two rigid and two swivel with brake 6. Overload valve protects pump and operator Ideal for Many Applications The simplicity and compact design of these carts make them suitable for lifting and transporting loads, order-picking, die handling and assembly operations. An ergonomic solution to lifting, positioning and transporting. Reliable & Stable Overload valve design prevents damage from misuse of the truck and reduces the overall maintenance cost. Each cylinder is equipped with an internal hydraulic velocity fuse. The heavy duty steel construction is engineered to hold up in harsh environments. Two rigid front casters and two rear swivel (with brake) increase maneuverability in tight areas. Safety & Comfort Safety stops minimize the risk of an empty deck from lowering while performing maintenance. Diminishes the amount of worker bending and lifting, which reduces risk of injury. Raise and lower the deck with minimum pain and strain. 【Technical Details】 Model - 　 - SPT50D Capacity - - 1100 lbs - 500 kgs Min. Height - h13 - 11" - 28 cm Max.Height - h12 - 35.4" - 90 cm Height of tiller in drive position Max. - h14 - 39" - 97 cm Table Dimensions - l/b5/s - 31.9" x 19.7” x 2“ - 81x50x5 cm Overall Length - l1 - 38.2” - 97 cm Wheel (PU) - - Φ5“ - 12.5 cm Truck weight - - 174 lbs - 79 kgs Gross Weight - - 176 lbs - 80 kgs Carton Size - - 35" x 20" x 11" - 90x51x29 cm
