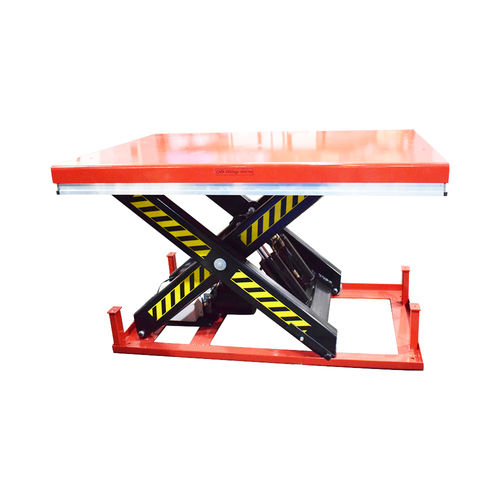

Scissor lift table ET4001

electricstationaryfor heavy loads

Electric Lift Table Capacity 8800 LBS Table Size 67" x 47" 1. CE Certification 2. 8800 LBS Capacity 2. Max lifting height: 43" 3. Lowered Height: 9.8" 4. Table Size: 67" L X 47" W 5. Power: 2000W/ 110V/60HZ 6. Lift Time: 25s What are the functions of Electric Lift Platform? Raise or lower heavy material to desired position. Meanwhile,Avoid physical harm. Widely used in automotive, container, mold manufacturing, production lines, chemical canning, repair industry etc. 1) Reliability • CE Certification • Heavy-duty design 2) Efficiency • Low-Voltage(24V) control box with up-down buttons • Pieces moving parts with self-lubricating guide ring 3) Safety and Easy Maintenance • Heavyduty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst. • Removable rings, mesa makes the pipes easier to install and maintenance • Wedgeblock is equipped with a safety guard, convenient maintenance Warning • Unauthorizedmaintenance or training is strictly prohibited Technical Details Model - 　 - SS_ET4001 - 　 Capacity - - 8800 lbs - 4000 lbs Min. Height - h13 - 9.8" - 25 cm Max.Height - h12 - 43.3" - 110 cm Table Dimensions - a/b - 67" x 47.2" - 170x120 cm Motor Power - - 2200 W - 2200 W Voltage - - 110V/60Hz - 110V/60Hz Lift Time - - 25s - 25s Truck weight - - 825 lbs - 375 kgs Gross Weight - - 830 lbs - 377 kgs Carton Size - - 68" x 48" x 10" - 171x121x25 cm
