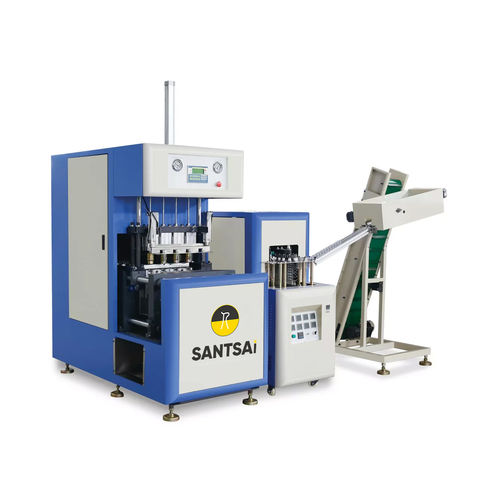

Injection blow molding machine STSMS-4

for PETfor bottlesfor containers

• Double crank arm for mold locking reaches high mold-locking strength and flexible action • Use PLC for control (time relay control optional), easy repair, low cost, with the time controllable accurately in 0.01s.. • The gas circuit consists of moving and blowing so as to satisfy the different air demand of them . • The far-infrared heater uses a way of conversion self-rotating heating and the rail revolution makes the heating even, quick and reliable. • Every heating lamp has independent temperature control device, to get ideal preform heating effect • The direction of the heating lamp is adjustable upon different preforms. • Only need one operator, do not need special training. Simple installing and starting. Max. height - mm - 360 Max. diameter - mm - 105 Mould plate dimension(LxH) - mm - 700×420 Mould thickness - mm - 240 Mould opening stroke - mm - 200 Power - - 220-380V/50-60Hz Total power - KW - 21 Heating power - KW - 20 Main body weight - KG - 750 Preform Autoloader(LxWxH) - M - 1.8×0.60×1.4 Preform Autoloader weight - KG - 350 Bottle Conveyor(LxWxH) - M - 2.0×0.60×1.1 Bottle Conveyor weight - KG - 80
