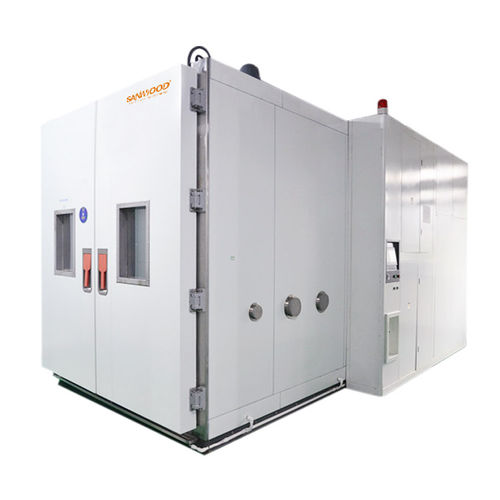

Temperature test chamber SMC-1800-CC

humidityagingfor wires

Product applications: To simulate test environment with different temperature and humidity Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test… Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation Uncover test unit weakness in a short-term test with accelerated time effect Product features: 1. 1000 hour operation without evaporator frosting at low temperature 2. Refrigeration non heating control system power saving more than 30% 3. Automatically and effectively take away the heat from the test object. 4. Can achieve ultra low humidity environment at 10%/20C. 5. 5.7 inch touch screen control system with multi language, Ethernet E management , USB data storage function, APP mobile platform management Main parameters: 1. Standard inner volume: 80~1500Litres 2. Temperature range：-70℃～+180℃ 3. Humidity range：20～98%RH 4. Temperature uniformity：±1℃ （no load） 5. Humidity uniformity：±2%RH 6. Temperature fluctuation：±0.5℃ （no load） 7. Humidity fluctuation：±2% 8. Temperature deviation：±2℃ 9. Humidity deviation：±2% 10. Heating rate：3.0～5.0℃/min 11. Cooing rate：1.0～3.0℃/min 12.Inner chamber material: 1.5mm stainless steel (SUS#316) 13.Outer chamber material: 1.2mm cold rolled steel sheet, powder spraying 14. Heat insulating material: polyurethane board + mineral wool 15. Safety: Cut off the control circuit, over temperature protection, overload relay, refrigerator protection circuit, leakage cut-off machine, external alarm scripts, water shortage alarm 16. Power supply: AC220V,1/N, 50Hz or AC380V,3/N, 50Hz
