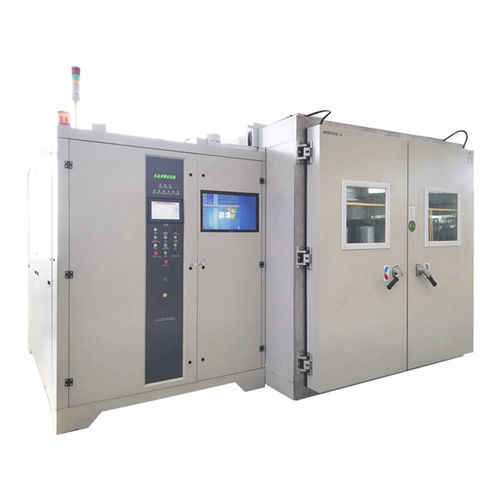

Climate chamber SMC-120-CC-WT-FB
temperaturehumidityfor composite materials

Climate chamber - SMC-120-CC-WT-FB - Sanwood Technology - temperature / humidity / for composite materials
Climate chamber - SMC-120-CC-WT-FB - Sanwood Technology - temperature / humidity / for composite materials
Climate chamber - SMC-120-CC-WT-FB - Sanwood Technology - temperature / humidity / for composite materials - image - 2
Climate chamber - SMC-120-CC-WT-FB - Sanwood Technology - temperature / humidity / for composite materials - image - 3
Climate chamber - SMC-120-CC-WT-FB - Sanwood Technology - temperature / humidity / for composite materials - image - 4
Climate chamber - SMC-120-CC-WT-FB - Sanwood Technology - temperature / humidity / for composite materials - image - 5
Climate chamber - SMC-120-CC-WT-FB - Sanwood Technology - temperature / humidity / for composite materials - image - 6
Add to favorites
Compare this product


Characteristics

Type
climatic
Controlled parameter
temperature, humidity
Product applications
for composite materials, for automobiles, for materials testing machines, for solar panels
Configuration
walk-in
Protection level
explosion-proof
Options and accessories
with window, with temperature and climatic control, remote-controlled
Other characteristics
low-temperature, for high temperatures
Capacity

Max.: 40 m³
(1,413 ft³)

Min.: 8 m³
(283 ft³)

Temperature

Max.: 80 °C
(176 °F)

Min.: -65 °C
(-85 °F)

Description

Walk in climatic chamber : Widely used in aerospace, aviation, electronics, automotive, battery and other industries to do electronic heating products, materials, parts, equipment, etc. Accelerated thermal cycle test, alternating thermal test and constant temperature test In addition, high and low temperature routine tests and low temperature storage can also be performed to evaluate the behavior of the sample under given environmental conditions. 1.Test Volume from 8m³ ~ 40m³ or even cutomized bigger. 2.Temperature range Integral type: -70C ~ 150C (A:0~150C.; B:-20~150C; C:-40~150C; D:-70~150C) Assembled type:-65C ~80C (A:0~80C.; B:-20~80C; C:-40~80C; D:-65~150C) (Heating rate:Within 75mins 2~5mins/C) 3. Humidity: 20% RH~ 95%RH (Optional)Fluctuation:±1.5%;Uniformity:±3% 4.Compressor :semi-close Germeny Bock, Germeny Bitzer. 5.Refrigirant:R408,R58,R99, We use environmental-friendly R449 for European market for low GWP. 6.Sanwood self-developed screem touch controllor with Multilingual operation. 7. Inner box SUS#304; Outer case: color steel plate material 8.Built-in USB2.0 interface, digital recorder ( can hot-swappable at any time during the records) 9. Different system Safe protection device: compressor(motor) oven-press , over-heat ,oven current protection .humidity .................... Two decade years of manufacturing experience in climatic test chamber industry. Clients: TUV(Germany/Hungary/Asia pacific),UL (U.A.E branch), battery explosion proof test projects (for CATL/Sunwonda/Svolt),electronic products reliable test projects(Huawei/LG/Samsung).
