Aging test chamber SM-B-SUN

for automobilesfor epoxy polymer coatingson casters

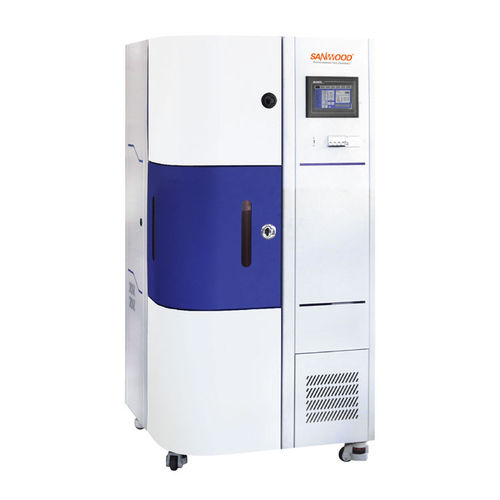

Xenon Test Chamber（New） B-SUN is a powerful, highly cost-effective, easy to use and convenient to maintain xenon test chamber. It uses a air-cooled xenon lamp and relevant daylight filter（both are imported from America）, to simulate more real and much better the full spectrum sun light of outdoor, ensure the test results obtained from laboratory have a perfect correlation with outdoor application. Furthermore, the samples holder is designed with a special rotating drum to ensure each sample can obtain the same and uniform irradiance during the whole test. B-SUN Xenon Test Chamber can meet with all standards requirements from different fields, it can hold 22 pieces samples, not only has spray function, but also can control the relative humidity of working room. Technical Parameters ■ Xenon Lamp：One 1.8KW xenon lamp （imported from America） ■ Filter：Daylight filter （Also can choose extended UV filter or window glass filter） ■ Lamp Lifetime: Near 1,500 hours ■ Exposure Area：2,200 cm2 (can put 22 pcs samples of 150×70mm size)\ ■ Adjustable Irradiance Range： 0.3～0.75 W/m2 (Single point of control：340nm) 0.5～1.35 W/m2 (Single point of control：420nm) 30 W/m2～90 W/m2 (Full spectrum ：from 300～400nm) ■ Controlling irradiance point：340nm or 420nm or 300nm～400nm（show at the same time） ■ Adjustable Black Board Temperature Range：RT+30℃～90℃ ■ Adjustable Working room Temperature Range：RT+8℃～62℃ ■ Adjustable relative humidity of working room：20%～75%（Light）；50%～95%（Dark）； ■ Overall Size：860×800×1740mm ■ Net Weight：200KG ■ Power Supply：AC 380V，50 or 60HZ；Max. Current 32 A ■ Total Machine Power：6KW
