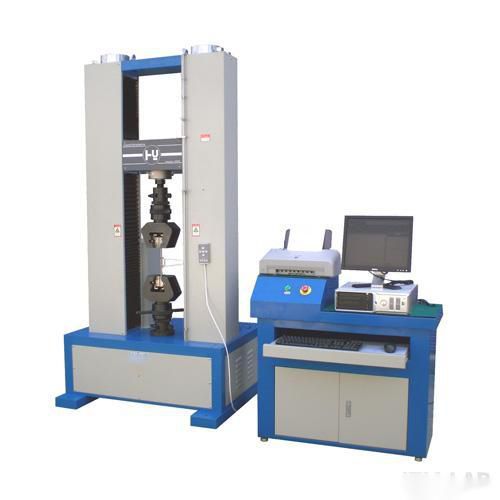

Compression testing machine SM-200T
universaltensilebending

compression testing machine
compression testing machine
Add to favorites
Compare this product


Characteristics

Test type
compression, universal, tensile, bending, tensile strength
Operating mode
PLC-controlled
Test material
for plastics, for rubber, for building materials, for springs, for wire ropes and strands, for pipe, for textiles, for sheet metal, for paper, for cement, for bars and tubes

Description

Capacity(Optional) 200KN(20T) Unit(Switchable) - N,KN,Kgf,Lbf Sensor accuracy - ±0.01%FS Force resolution - 1/500,000 Precision grade - ±0.5% Accuracy of measurement - ±0.5%F.S Effective measuring range - 0.2%~100%F.S Effective stretch space - 800mm (without fixture) Effective measurde width - 600mm Test speed range - 0.001~350mm/min Test speed accuracy - When speed is lower than 0.01mm/min, within ± 1% of the set value. When speed is ≥0.01mm/min, within ± 0.5% of the set value. Deformation measurement (optional) - Large deformation: 10~1000mm. Host size - W1200xD720xH2200mm Test Standard: GB/T16491-2008,GB2611-2007,JB6146-2007,JJF1246-2010 ,GB/T228-2002, GB/T14452-93 ,ASTM D638-03,ASTM D790-07,GB/T2792、ASTM D3330-04,ASTM D1894-06 Application: ●Metal Bar/Sheet Tensile Testing. ●Rubber/Plastic Tensile Testing. ●Plastic Three-point Flexural TestingTape 900/1800 Peel Strength Test. ●Fabric Tear Test. ●Beverage Packaging Compression/Bursting Force Test. ●Metal/Plastic Bending Test. ●Environmental Protection Splint Bonding Test. ●Composite Woven Packing Tape Strength Test. Features: ●High precision: Adopts Japan Panasonic AC servo motor drive, Taiwan ABBA high-precision no-backlash ball screw drive, with the (United States) Transcell high-precision explosion-proof LOADCELL, force accuracy up to ±0.25%, displacement resolution up to 0.0001mm. ●High intelligence: Automatic recognition of fracture, automatic return, curve traversal function, free switching units, a variety of languages can be switched: simple/traditional Chinese, English...Load - displacement, load - time, displacement – time, stress - strain, strain - time, stress - time curve analysis.
