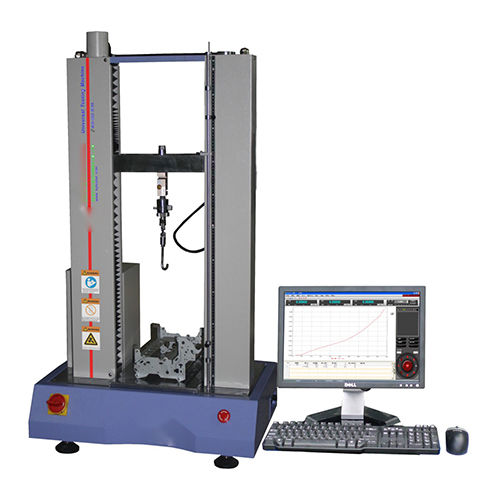

Compression test machine SM-8018

tensilebendingpeel

Typical applications - Tape/Adhesive parts peeling test at 90 degree Metal plate/rod/pipe strength test Rubber/plastic tensile test Metal/plastic benging test Wire/sheet tensile/compression/tearing/benging test Scope - tape, automobile, ceramic, composite material, construction, food and medical equipment, metal, paper, plastic, rubber, textile,wood, communication. Specification Model - RS-8018 Capacity - 100N,200N, 500N, 1KN,2KN, 5KN, 10KN Unit switch - N,KN,kgf,Lbf,MPa,Lbf/In²,kgf/mm² Load resolution - 1/500,000 Load accuracy - ±0.5% Load range - Rangless Max. stroke - 650, 1000mm optional Effective width - 400, 500mm optional Test speed - 25~500mm/min Speed accuracy - ±1% Stroke resolution - 0.001mm Software - standard control software Motor - AC frequency control motor transmission column - high accuracy of ball screw Main unit dimension W*D*H - 760*530*1300mm Main unit weight - 165kg Power - AC220V 5A or specified by user
