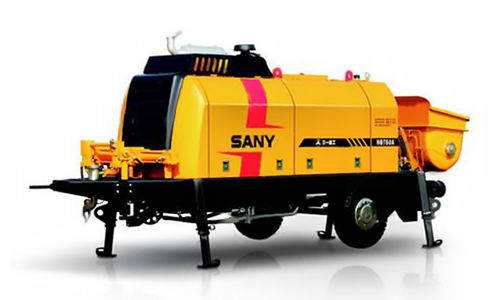

Trailer-mounted concrete pump HBT6006A-5
for constructionelectricpiston

Add to favorites

Compare this product

Go to the SANY website for more information

Characteristics

Configuration: trailer-mounted
Applications: for construction
Other characteristics: electric, piston, wear-resistant, industrial
Output: 70 m³/h
(2,472 ft³/h)
Pumping pressure: 7 MPa
Power: 75 kW
(102 hp)
Width: 2,100 mm
(83 in)
Length: 6,590 mm
(259 in)
Height: 2,200 mm
(87 in)
Weight: 5,880 kg
(12,963 lb)

Description

· Differential pressure controlled, bi-directional hydraulic system · High flow, high efficiency valve system · Automatically retracted pistons Intelligent Control System · Fault self-diagnosis technology · Dedicated motion controller · Emergency override available Efficient Pumping System · High-efficiency pump technology · Large bore reversing cylinder · High power mixing motor · New-type hopper Advanced Energy-saving Technology · New generation energy-saving technology automatically adjusts engine power output to match the load which results in fuel savings of up to 25%. Wear-resisting Technology · Sino-Germany high-tech materials and advanced technology are adopted to greatly improve the product performance.
