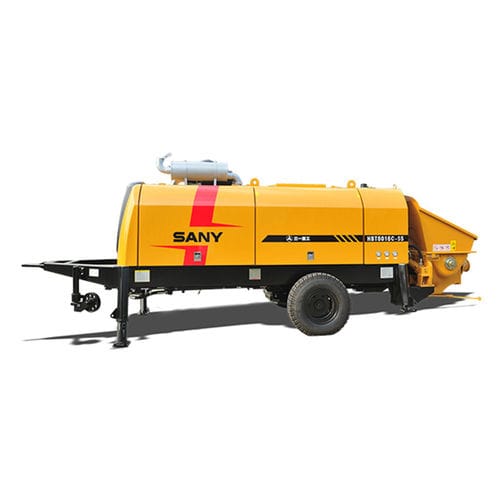

Trailer-mounted concrete pump HBT6016C-5S(T3)
for constructionpistonindustrial

trailer-mounted concrete pump
trailer-mounted concrete pump
trailer-mounted concrete pump
trailer-mounted concrete pump
Add to favorites
Compare this product

Go to the SANY website for more information

Characteristics

Configuration
trailer-mounted
Applications
for construction
Other characteristics
piston, wear-resistant, industrial
Output

45 m³/h, 70 m³/h
(1,589.2 ft³/h, 2,472 ft³/h)

Pumping pressure

10 MPa, 16 MPa

Power

180 kW
(244.7 hp)

Width

2,125 mm
(84 in)

Length

6,830 mm
(269 in)

Height

2,685 mm
(106 in)

Weight

6,800 kg
(14,991 lb)

Description

· Differential pressure controlled, bi-directional hydraulic system · High flow, high efficiency valve system · Automatically retracted pistons Intelligent Control System · Fault self-diagnosis technology · Dedicated motion controller · Emergency override available Efficient Pumping System · High-efficiency pump technology · Large bore reversing cylinder · High power mixing motor · New-type hopper Advanced Energy-saving Technology · New generation energy-saving technology automatically adjusts engine power output to match the load which results in fuel savings of up to 25%.
