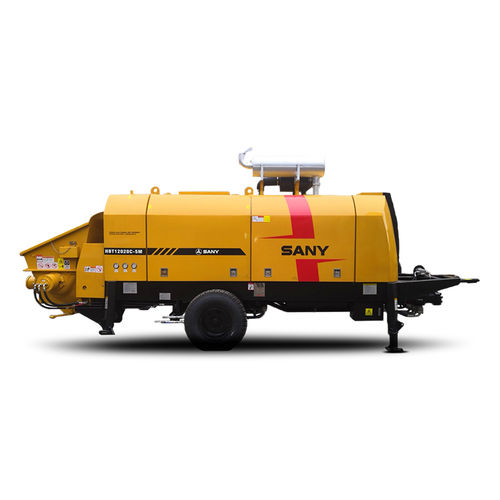

Trailer-mounted concrete pump HBT12020C-5S
for constructionpistonwear-resistant

Add to favorites

Compare this product

Go to the SANY website for more information

Characteristics

Configuration: trailer-mounted
Applications: for construction
Other characteristics: piston, wear-resistant
Output: 75 m³/h, 120 m³/h
(2,648.6 ft³/h, 4,237.8 ft³/h)
Power: 300 kW
(407.9 hp)
Width: 2,125 mm
(84 in)
Length: 7,380 mm
(291 in)
Height: 2,950 mm
(116 in)
Weight: 9,500 kg
(20,944 lb)

Description

· Differential pressure controlled, bi-directional hydraulic system. · High flow, high efficiency valve system · Automatically retracted pistons Intelligent Control System · Fault self-diagnosis technology · Dedicated motion controller · Emergency override available Efficient Pumping System · High-efficiency pump technology · Large bore reversing cylinder · High power mixing motor · New-type hopper Advanced Energy-saving Technology · New generation energy-saving technology automatically adjusts engine power output to match the load which results in fuel savings of up to 25%. Wear-resisting Technology · Sino-Germany high-tech materials and advanced technology are adopted to greatly improve the product performance.
