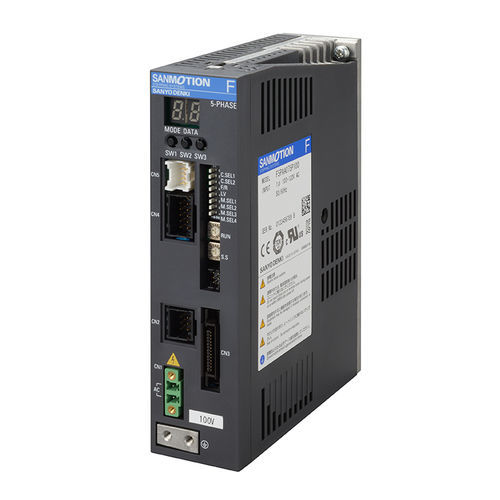

Single-phase motor controller F5PA

five-phase stepperhigh-resolutioncompact

Input voltage : Single phase 100 to 120VAC +10,-15%, 50/60Hz Single phase 200 to 240VAC +10,-15%, 50/60Hz Features: -* Low vibration This driver features approximately 30% less vibration compared with our conventional product. -* High Torque Torque is increased by approximately 5% when combined with our newly developed motors. As output torque is the same for both 100 and 200 VAC input voltages, there is no need to change motors if power specifications change. -* Analysis function and device startup support Using an encoder with the motor makes it possible to monitor information such as the current position and speed. It simplifies determining causes of vibration and step-out. -* Brake Control Equipped with power supply for electromagnetic braking to automatically control open/close timing. No external power is needed for braking. -* High level microstep It is equipped with 1/1 to 1/250 micro-step and electronic gear functions. Motor resolution can be set by ball screw pitch and reduction gear ratio. -* Compact size This driver features a 29% reduction in volume compared with our conventional product. Compatible Motors: 42, 60, 86 mm sq. single or dual shaft
