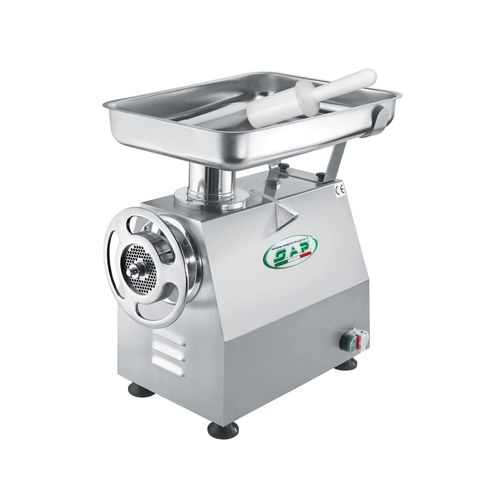

Manual meat mincer TCB series

bench-topstainless steel

Cast alloy structure, covered entirely with AISI 304 stainless steel. Self-ventilated intermittent use motors, with 4 hardened steel gears enclosed in a leak-proof oil bath gearbox. Stainless steel hopper and meat collection tray. The optional microswitch on the hopper, on request, requires a larger inlet mouth, Ř 76, and a hopper fitted with a safety microswitch and finger guard, compliant with EC regulations, increasing hourly output by 35%. The AISI 304 stainless steel mincing unit can be disengaged by simply turning a lever. All machine parts can be easily cleaned using a damp cloth. SAFETY: The machines comply with European and international standards. The machines fall under annex IV of the Machinery Directive 2006/42/EC. Motor and controls have IP 68 ingress protection, equipped with reverse switches and EC regulation compliant meat inlet mouth. Class 1 electrical equipment. With 24 V low-voltage board and external mouth lock bayonet lever.
