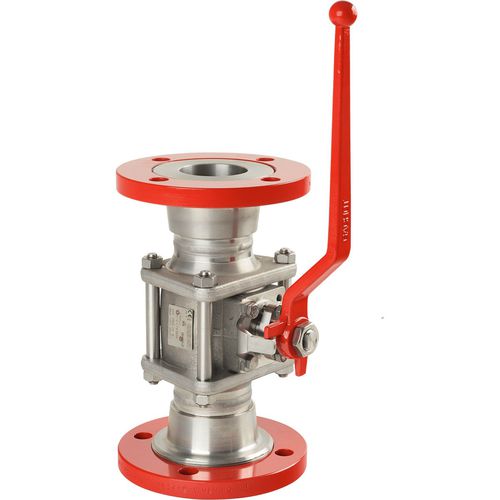

Ball valve V16 Gachot®leverflange3-piece
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- lever
- Body
- flange, 3-piece, stainless steel, carbon steel
- Applications
- for the chemical industry, for heating, for the petroleum industry, for shipbuilding
- Number of channels
- 3-way
- Associated function
- reducing
- Other characteristics
- standard, full-flow
- DN
Min.: 8 mm
(0.315 in)Max.: 200 mm
(7.874 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 100 bar
(1,450.4 psi)- Temperature
Min.: -50 °C
(-58 °F)Max.: 305 °C
(581 °F)
Description
V16 Gachot® Three piece Ball Valve with unique design for easy and quick installation and maintenance.
General applications
General industry, Chemical and petrochemical industry, Shipbuilding, etc.
Technical data
Leakage Rate: EN12266-1 – Rate A (no leakage)
Flange / BW / SW / Tapped
Options
Heating jacket
Sight Glass
Check valve
Electrical continuity
Advantages
Face to face: ISO5752-S01 (Flanged)
Face to face: EN 12982 (BW/SW – stainless steel version)
Anti blowout system in standard
Catalogs
V16 Gachot® Ball Valve
20 Pages
