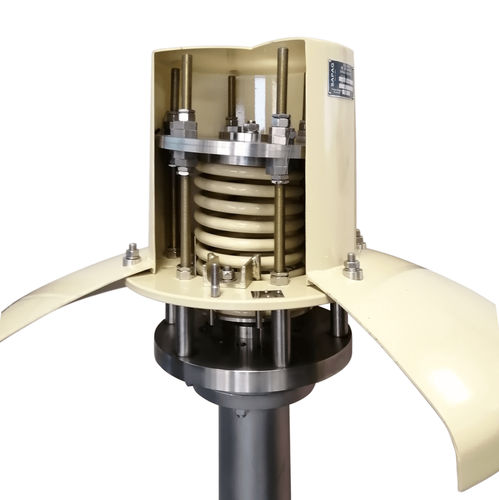

Water pressure relief valve for pipelinesflange
Add to favorites
Compare this product
Characteristics
- Fluid
- for water
- Applications
- for pipelines
- Other characteristics
- flange
- Controlled pressure
Max.: 77 bar
(1,116.8 psi)Min.: 0 bar
(0 psi)- DN
Max.: 200 mm
(7.874 in)Min.: 50 mm
(1.969 in)- Flow rate
Max.: 430 l/s
(113.59 us gal/s)Min.: 0 l/s
(0 us gal/s)
Description
The SAPAG® Pressure Relief Valve owes its qualities to its original simplicity, the result of long theoretical studies and tests. Pressure relief valve is an effective way of protecting a pipeline against overpressures.
Applications
Overpressure protection for water distribution and treatment networks.
Technical data
Températures (°C): Ambiantes
Unidirectional design
Flange connections
Others : on request
Advantags
Total lack of guidance
Negligible inertia
Metal-to-metal seat
Reduced relief (variation in pressure during opening)
Small face to face
