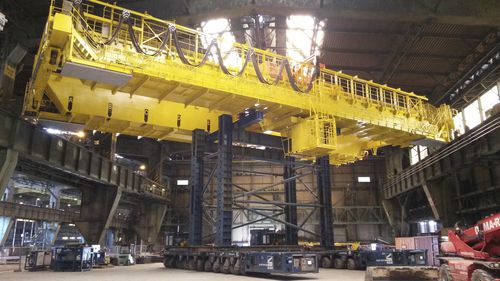

Mobile gantry crane SL2500

hydraulicfor heavy loads

Sarens has a variety of gantry systems in its fleet, depending on the load and the needs of the project. Tower systems can be used in combination with strand jacks, or gantries can be equipped with their own jacking or climbing systems. Depending on the load and height of the gantries, external bracings might be necessary. It is possible to use towers in pairs (vessel lifts) or in multi-coupled lifting units (module lifts), to obtain the required lifting set-up. Sarens has a broad experience in lifting with gantry systems. For example, the lift of a top side of an oil rig of 12.000T and the installation of a 6.000T shipyard gantry on a height of 140m. Gantries can also be used in combination with skidding and transporting systems. • DISCOVER OUR SL2500 - in-house design - multi-functional gantry lifting system - lifting capacity of 250T per tower - height up to 50m • ADVANTAGES - fully containerised - limited footprint - built out of modular elements - multiple tower set-ups • WORKING PRINCIPLE - each tower has one incorporated jack - jack are composed of hydraulic cylinders combined with hydraulic locking system - in combination with primary and secondary lifting beams - in combination with bracing system • SOLUTIONS - typical jack and skid operations for turbine gensets - custom-made - used in combination with − special trailers − lifting beams − skidding system and other systems
