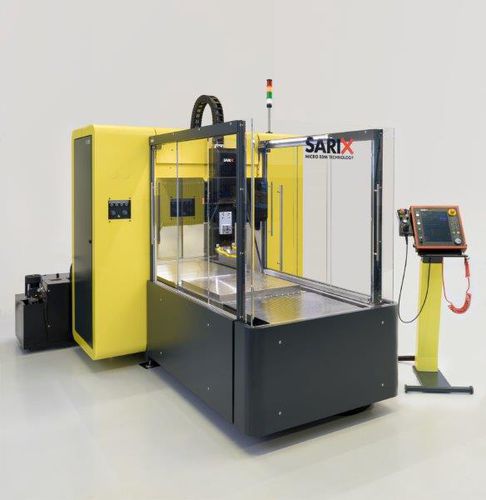

CNC micro-drilling machine SX200-L PULSAR
high-speedEDM

CNC micro-drilling machine
CNC micro-drilling machine
CNC micro-drilling machine
CNC micro-drilling machine
CNC micro-drilling machine
Add to favorites
Compare this product


Characteristics

Type
CNC
Other characteristics
EDM, high-speed

Description

Full open door access to work piece from 3 sides Operator full safety access protection On-board adaptive machining measurement and vision device High-speed drilling on hard alloys High speed Micro EDM Drilling according NADCAP machine calibration guidelines High Power Pulse Shape generator, SX-HPS Electrode diameter range from 0.1 to 3.0 mm, length up to 600 mm Electrode automatic re-feeding and wear compensation rotating spindle, SX-A344L Multiple diameter automatic collet, SP-MDC Electrode changer through 8 electrode cartridge, SX-Revolver Drilling Calibration process for multiple hole size on the same work piece Breakthrough detection software, SX-BTD SX-CAM Aero for the creation of the 3D Shape / diffusor holes, integrated on the SX-3D µEDM Milling CAM software Work piece alignment probing In process measuring and vision, SX-MVS
