Workshop shelving EP series

with drawerslight-dutyfor heavy loads

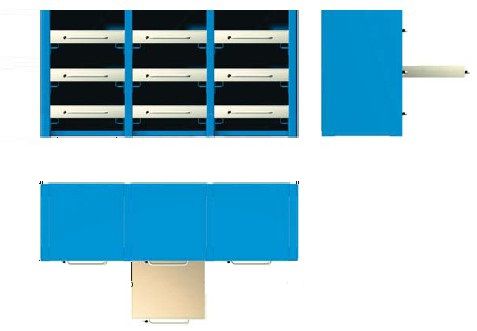

The system of Removable Racks for heavy loads makes the use of sliding trays with a high loading capacity be possible, which solve the problem of storage for heavy materials (up to 1500 k.!) in companies, warehouses and production centres. This system enables as much use of the available spaces as possible as well as offering a perfect order condition, enhancing aesthetically the premises. A- Rack height 2000 mm. or 2500 mm. B - This dimension figure depends on the number of trays and rack height. C - Rack depth 1130 mm. or 1330 mm. D - Module width, and it might be 1080 mm. (module of 1000) or 1280 mm. (module of 1200). E - Tray extension 940 mm. or 1140 mm. The basic parameters to be specified in order to ask properly for a removable rack are as follows: - The type and quantity of each module. - The rack height. - The arrangement of drawers, trays, etc. - Optional specifications, if appropriate. This type of racks, because of the weight accumulated and the risks it might involve, are to be compulsorily anchored to the floor. SARRALLE S.A. supplies, for such a purpose, hold-down screws allowing racks to be perfectly anchored to the floor. Prior to doing that, it is absolutely necessary to check that the floor these racks are going to be located on is suitable to withstand the whole load that might be accumulated.
