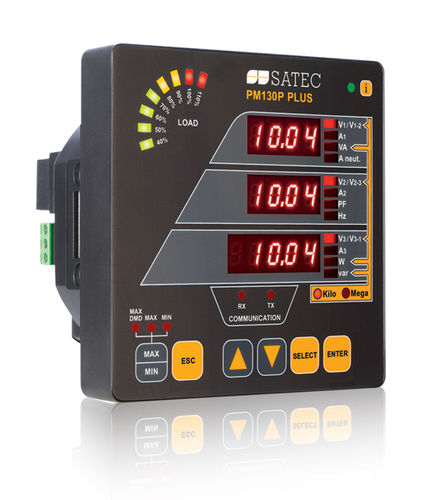

Monitoring analyzer PM130P PLUS

for electrical networkspowervoltage

The PM130 PLUS is a multifunctional 3-phase power meter. This series provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering. Description The PM130 PLUS provides a cost-effective substitute for numerous analog meters used by industrial, commercial and utility customers for basic power metering. The PM130 PLUS is widely integrated in panel boards and SCADA systems. With the addition of the unique TOU module, the EH model answers the needs of revenue metering applications. It is also suitable for utility substation automation with its support of the industry standard DNP 3.0, Modbus RTU and IEC 60870-5-101/104 protocols, as well as its I/O capabilities (using the Digital Input/Output modules). The PM130 PLUS series consists of two basic models providing digital measurements of more than 80 electrical parameters locally, and more than 100 electrical parameters via RS-485 interface.
