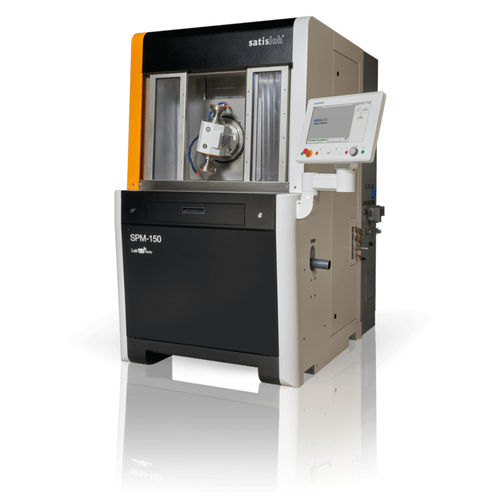

Surface grinding machine SPM-150

opticalCNC3-axis

The SPM-150 is the perfect choice when it comes to match simple and clear operation with modern CNC-axis technology for efficient processing of spherical lenses with Ø 10-150 mm. The SPM-150 is the universal genius for grinding spherical surfaces with Ø 10-150 mm. Following the footsteps of the longterm proven and well-established Satisloh SPM-125, it combines efficient processing with simple and clear operation without compromising on high surface quality. Efficient and flexible The perfect choice for all steps of spherical processing: pre- and fine grinding, edge grinding, chamfering and diameter reduction Grinding in standard and swivel mode Integrated center thickness measuring system (optional) Optional grinding of rotational symmetric aspheres in cup tool mode 360° tool swivel head offers full swivel range and saves space at the same time Simple operation Fast and easy setup and data input with intuitive Satisloh graphical user interface BaSyS Automatic door opening Easily accessible working chamber for simple maintenance and cleaning Reliable precision Direct driven dual spindles ensure high surface quality through low subsurface damage during the grinding process Improved crosscut adjustment (US patent no. US 9,446,494 B2) for best form accuracy Rigid polymer concrete base with 12x better vibration absorption than cast iron to guarantee stable processes and repeatable results
