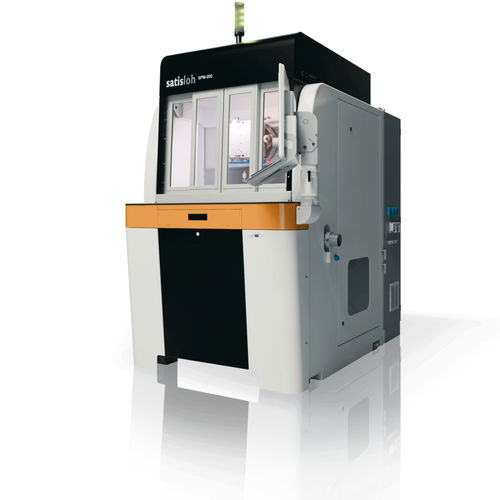

Optical grinding machine SPM-200

surfaceworkpiecehorizontal

The SPM-200 precision optics grinding machine covers a wide workpiece range from 5–200 Ø in mm. The unique dual-spindle technology and axis design enables superior speed and consistent processing of spheres, aspheres, & freeform surface. Precise grinding for a wide range of premium optic surfaces The SPM-200 is a highly flexible machine which enables the efficient and cost-effective production of premium optic surfaces. Efficient and flexible The extended Y-axis and modular spindle concept allow for wider workpiece geometry processing. The patented 360° tool swivel head with up to two dual tool spindles and additional horizontal spindle saves set-up times and allows multiple processes without retooling. Disc and cup-wheel mode grinding enables cost-effective production. Reliable and precise Direct driven and water-cooled spindles and axis for utmost precision Optional air bearing workpiece spindle allows for an excellent surface finish 3D process simulation for high process safety The machine’s Integrated Quality control System (IQS) automatically adjusts for tool wear, compensating for any inaccuracies The On Machine Metrology system (OMM) verifies the quality of aspheres and allows for instant correcting The unique and proven polymer concrete base and vibration-dampening machine feet provide high levels of stability Easy to use Satisloh’s guided software interface BaSyS allows for easy and convenientmanufacturing set-up Easy-accessible machine design allows for convenient operating, plus fast and easy maintenance
