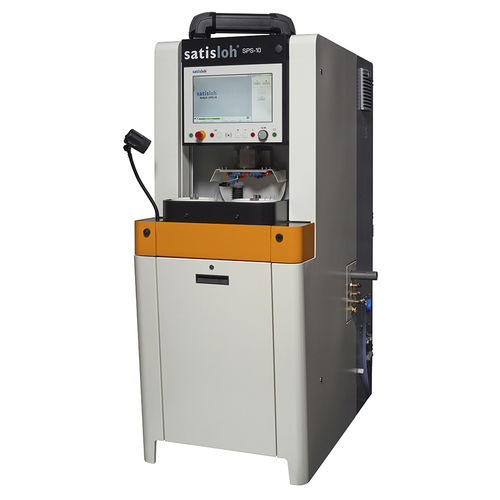

Glass polishing machine SPS-10

lensfor precision opticsfinishing

The SPS-10 micro-optics polishing machine extends polishing production capabilities to include complex, small lenses, non-linear shapes, and micro-optics spheres and aspheres with maximum precision and perfect surface finishing. Micro spheres & aspheres polishing The SPS-10 is designed for micro-optics with the highest demands on precision and diameters from below 1 mm up to 10 mm. Its processing possibilities include the dressing of tools with integrated dressing spindle, crosscut adjustment, & optional asphere and stemp polishing. Efficient and flexible A choice of 3 reception systems available for different work pieces; air pressure, vacuum and cementingchuck or collet chuck. Choose between an air bearing or ball bearing spindle, depending on application. Automated production ready. Optional integration of the HS-30 automation system allows for highly sensitive micro lens handling. Low power consumption and flexible machine location, independent from power source. Reliable and precise Proven ‘Synchrospeed’ method drives the polishing process. Direct driven water-cooled spindles (workpiece, tool and dressing spindle) for better repeatabliity & highest precision. Higher positioning accuracy through C-axis mode of workpiece spindle. The machine’s Integrated Quality control System (IQS) automatically adjusts for tool wear, compensating for any inaccuracies. Easy to use Optimized Human Machine Interface (HMI) allows for easy operation. ReST-interface allows smooth integration into your MES-360 system. Full connectivity to ProACT software for pre-polishing and corrective polishing of aspheres.
