Bulldozer control system ECS-D30

grading

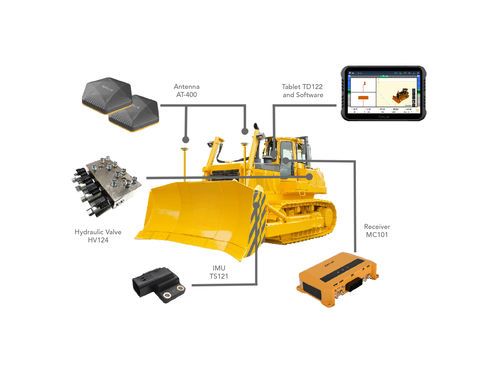

The ECS-D30 dozer guidance system offers real-time 3D visualization, exceptional accuracy, and comprehensive earthwork data to optimize grading operations and minimize risks. With detailed analytics and a user-friendly interface, the system enhances productivity and maximizes efficiency. Comprehensive 3D Visualization The ECS-D30 dozer guidance system provides intuitive 3D visualization on an in-cab tablet, offering operators comprehensive construction data such as design surfaces, cut/fill information, slopes, elevations, reference lines, and earthmoving progress, enabling operators to visualize dozer movements in real-time. Exceptional Accuracy Equipped with high-precision dual-GNSS, a customized IMU sensor, and advanced algorithms, the ECS-D30 dozer guidance system achieves an accuracy of ±3 cm. This precision is maintained across both sides of the bucket tip and throughout various working positions. Enhanced Safety The geo-fencing feature alerts operators to potential hazards and prevents them from entering designated avoidance zones, reducing the need for additional on-site personnel. Adaptable Compatibility The ECS-D30 dozer guidance system’s adaptable design ensures compatibility with a wide range of equipment, including excavators, graders, and dozers. Operators can easily switch machine receivers, antenna and tablet between these types of equipment, allowing for efficient and versatile operations across their entire fleet.
