Identification tag StackTag™

RFIDadhesivepaper

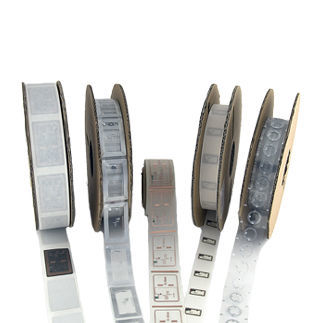

High speed identification of stacked items with PJM StackTag™ One of the key advantages of SATO’s PJM RFID systems is the ability to identify tags on items when multiple items are stacked, or closely located, even in the presence of liquids. This stacking feature is provided by PJM StackTag™. We provide a number of tag formats and tag sizes to suit different applications. A number of popular tag types are available from SATO VICINITY. Depending on volumes, new tags can be designed for particular applications. Typically, tags are provided as bare inlets, transparent adhesive labels or paper adhesive labels. High frequency RFID 18000-3 Mode 2 Operation frequency 13.56 MHz Up to 1000 tags/second Identification speeds up to 1000 tags/second (not including reader overhead) High command speed Reader command data rate of 424 kbit/s High reply speed Reply data rate of 106 kbit/s per reply channel & reply data rate of 424 kbit/s when communicating with one tag at a time 8 reply channels Reply frequency hopping over 8 randomly selected channels Large memory space Advanced 4 kbit OTP memory Each tag comes with unique identification Unique serial number Memory lock Memory can be incrementally locked Password protection Optional 48 bit password protection State retention State retention during temporary power loss Minimal separation Minimal tag to tag stacking separation for large stacks ESD protection devices (anti-static components) ESD Electronic Discharge protection for minimum 2kV 20 years data retention Data retention greater than 20 years at 25°C Fast programming Fast programming of OTP memory
