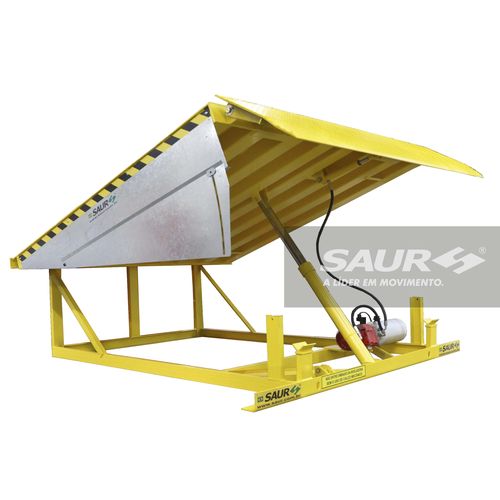

Hydraulic dock leveler

with articulated lip

Description and Application The SAUR Dock Levelers - Fixed on Pit act as mechanisms linking the warehouse to the vehicles, compensating for the difference in height between the trucks and the floor of the building with complete safety for people and less damage to goods. Allow for the access of industrial vehicles (forklifts, pallet trucks, carts) directly from the warehouse to the truck, eliminating unlevel sections and filling the gap between the truck and building, contributing to operator safety. SAUR Dock Levelers - Fixed on Pit foster flexibility in facilities, as the rapid loading and unloading flow reduces vehicle waiting time. Includes hydraulic action for smooth movements. Includes hydraulic unit, two cylinders (one for leveling and one for opening the channel), electric command with pedestal and buttons. Specifications • - Capacity of 6,000 kg • - Widths: From 2,000 mm to 2,200 mm (consult for other sizes) • - Length: From 1,500 to 3,150 mm • - Upper floor in non-slip sheet • - Automated adjustment of truck height oscillations caused by loading (more weight) or offloading (less weight in the truck) • - Articulated channel Short channel with advance of 350 mm for general cargo Long channel with advance of 500 mm indicated for slaughterhouse warehouse where there is an thick sealing system around the contour of the door and also for loading containers • - In the horizontal rest position, the channel is close and permits traffic over the platfrom The lateral safety sheet prevent accidents when the platform is lowered • - Rubber buffer to lean against the truck without damaging the bodywork or building.
