Hydraulic loading ramp
for warehousefor trucksmobile

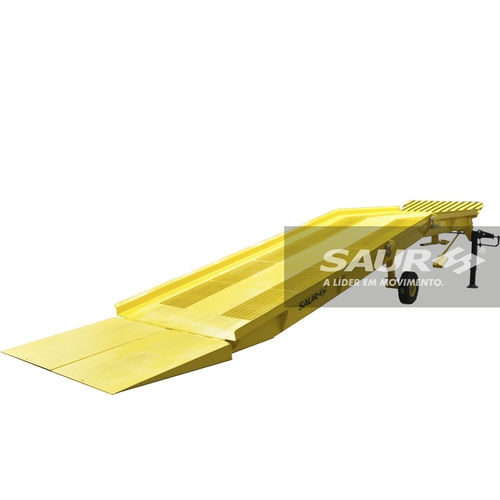

Hydraulic loading ramp - Saur - for warehouse / for trucks / mobile
Hydraulic loading ramp - Saur - for warehouse / for trucks / mobile
Hydraulic loading ramp - Saur - for warehouse / for trucks / mobile - image - 2
Hydraulic loading ramp - Saur - for warehouse / for trucks / mobile - image - 3
Hydraulic loading ramp - Saur - for warehouse / for trucks / mobile - image - 4
Hydraulic loading ramp - Saur - for warehouse / for trucks / mobile - image - 5
Hydraulic loading ramp - Saur - for warehouse / for trucks / mobile - image - 6
Add to favorites
Compare this product


Characteristics

Product applications
for warehouse, for trucks
Portability
mobile
Operation
hydraulic
Material
high strength steel
Other characteristics
adjustable

Description

Description and Application The SAUR Towable Hydraulic Yard Ramps are synonymous with practicality and speed in loading and unloading trucks, as well as joining the warehouse (higher level) to the yard (lower level). This equipment confers agility, as it allows loading to be carried out away from the shipping sector when congested and replaces concrete ramps between the warehouse and yard with economy and versatility, as they can be positioned according to need. This ramp incorporated support to be towed by a forklift or other tow vehicle. The support oscillates to reduce impact with the ground and offers an adjustable length. Should the company change locations, the Towable Hydraulic Yard Ramps can be taken along. Specifications • - Capacity: From 6,000 to 12,000 Kg • - Elevation: From 1,100 to 1,900 mm • - Width: 2,000 mm • - Length: 12,000 mm (with 10,000 mm inclining surface and 2,000 mm flat surface High strength steel structure • - Upper floor with welded non-slip metal grate • - Lateral safety flange Mobile channel with hinge and adjustment through counterweight to compensate for small oscillations of trucks Elevation via electric-hydraulic control (power - 1 HP) activated by a button • - Includes 10 m electric cable for connection to triple phase socket Two manually adjustable support
