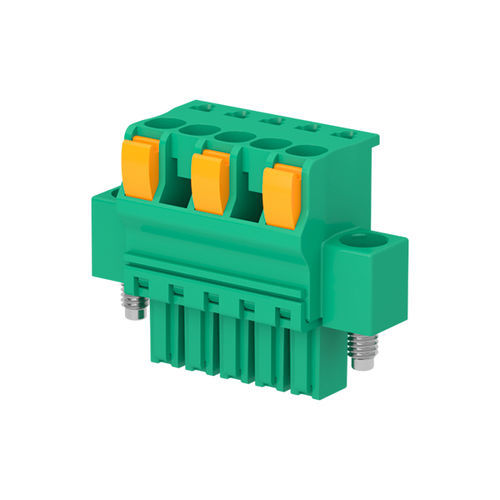

Data connector CBF020D7springcopperwire
Add to favorites
Compare this product
Characteristics
- Type
- data
- Connection type
- spring
- Material
- copper, wire
- Product applications
- housing
- Other characteristics
- self-extinguishing
- Primary current
9 A
- Voltage
300 V
- Pitch
7.62 mm
(0.3 in)- Operating temperature
Max.: 105 °C
(221 °F)Min.: -40 °C
(-40 °F)
Description
Number of poles: 2, Spring tightening, 9A, 1.5mm², 14AWG, 300V, Pitch 7,62 mm, Flanges, Wiring mode Right, Green (RAL 6032), Soldering technology Not applicable, UL, CUL, IEC
Stripping length11.5 mm
Operating temperature range-40°C ÷ 105°C
Contact resistance1 GOhm
Rated voltage300 V
Nominal current9 A
Wire section14 AWG
Insulating categoryI
Spring contactTin-plated copper alloy
Spring tighteningStainless steel
Insulating housing materialPA Polyamide
Insulating material groupI (CTI >= 600V)
Self-extinguishing class UL94V0
green(similar to RAL 6032)
black(similar to RAL 9005)
light grey(similar to RAL 7035)
dark gray(similar to RAL 7040)
orange(similar to RAL 2003)
blue(similar to RAL 5012)
red(similar to RAL 3017)
another colors(on demand)
