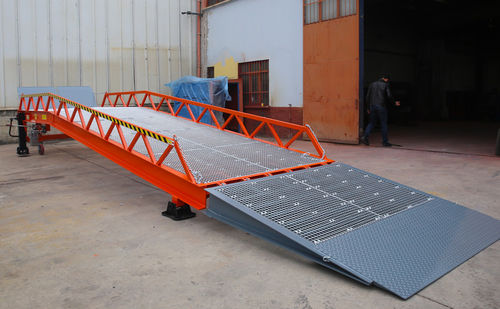

Mobile loading ramp PYR series

for forklift trucksfor utility vehiclesfor pallet trucks

Mobile loading ramps can be used for loading or unloading from zero to a height until 1000-1600 mm via forkdlifts and pallet trucks. Because the mobile loading ramps are portable, their position can easily be changed according to any situation. -CE Certificate -Steel construction designed for load distribution -Landing gear legs with two speed levels for height adjustment -Manually operated hydraulic system for lifting front and rear flaps -Front and rear flaps with high quality construction hinges -Front flaps hydraulically foldable in two parts -Front flaps made of 12/13 mm teardrop pattern plates -Open length 10500 mm, closed length 8020 mm -Platform floor made of galvanized forge-welded gratings for anti-slip -350 mm high side protection barriers -Movable soles for matching the ground -High maneuverable heavy load castors OPTIONAL PROPERTIES -Front Bumpers -Forklift support plates for each sides -1200 mm high side protection barriers -Electro-hydraulic system for lifting front and rear flaps
