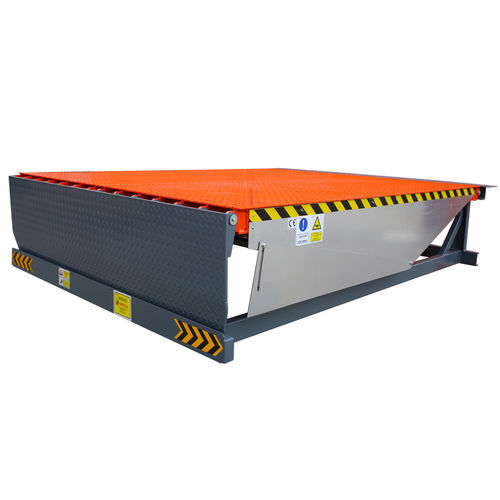

Electro-hydraulic dock leveler HDL series

hydraulicwith articulated lip

Hinged ramps are ramps that compensate for the height difference between loading: and unloading area at an average of +320 / -320 mm. Hinged ramps eliminate the problems of approaching the loading area with the help of the flaps. In addition, the electro-hydraulic system facilitates contact between two points. DESCRIPTION -CE Certificate -Compatible design with EN 1398 and ANSI MH30.2 -Platform floor made of teardrop pattern plates -Flap is made of 12/13 mm thick teardrop pattern plates -Heavy load capacity hinge system for maximum resistance to moving load -Side protection plates conforming to safety standards -Maximum operating slope 12.5% (7°) for work and worker safety -Platform floor is lifted with double hydraulic piston for high safety -Hydraulic emergency declaration mechanism -Electro-hydraulic system with IP65 protection class control panel -Security lock for maintenance -450x200x100 mm dimensions and 70 Shore side bumpers
