Belt conveyor type_10
with adjustable slopereclininghandling

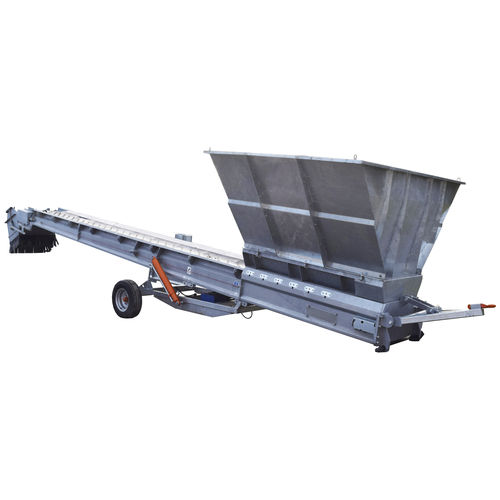

Belt conveyor - type_10 - SAUTEC - with adjustable slope / reclining / handling
Belt conveyor - type_10 - SAUTEC - with adjustable slope / reclining / handling
Belt conveyor - type_10 - SAUTEC - with adjustable slope / reclining / handling - image - 2
Belt conveyor - type_10 - SAUTEC - with adjustable slope / reclining / handling - image - 3
Belt conveyor - type_10 - SAUTEC - with adjustable slope / reclining / handling - image - 4
Belt conveyor - type_10 - SAUTEC - with adjustable slope / reclining / handling - image - 5
Add to favorites
Compare this product


Characteristics

Technology
belt
Form
with adjustable slope, reclining
Function
handling
Drive mechanism
electric drive
Transported product
for bulk materials, for waste, for wood
Sector
construction, for the wood industry
Other characteristics
stainless steel, variable speed, puck
Speed

75 m/min

Bulk throughput

250 t/h
(153.099 lb/s)

Effective width

800 mm
(31 in)

Length

12 m
(39'04" )

Description

The logistics of your bulk material flows are decisive to the success of your worksites. The 12m construction conveyor makes it possible to achieve this objective by optimising the flow of all types of bulk materials: ground, sand, spoil, rubble, etc. The site conveyor is a versatile equipment. - It can be used to convey a wide range of materials. - It is mobile and can be moved on the site. - Motorised hydraulic cylinders make it possible to control the rubble exit height. - Depending on your needs, different hoppers and end chutes can be added or removed at any time. - The integrated frequency inverter allows you to adjust the belt speed. The construction conveyor is available in several lengths, from 8m to 14m. For greater flexibility, you can hire the construction conveyor by the week or month.
