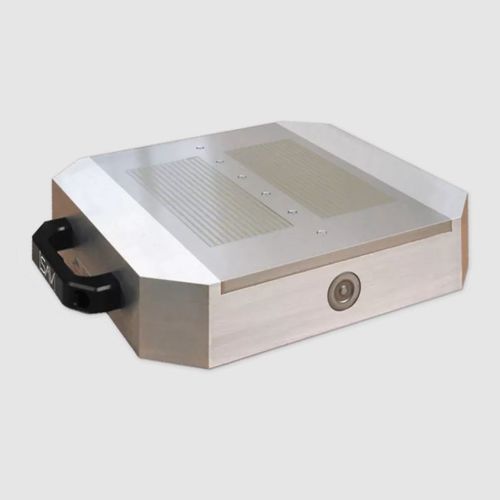

Permanent magnet magnetic chuck 220.31

rectangularfor grindingfor milling

Permanent-magnet-pallet with transverse pole pitch P = 6 mm In conjunction with zero-point workholding systems. Can be adapted to most systems. Aluminium main body with steel 1.0037/1.4571 pole plate Permanent magnetic pallet SAV 220.31 - 320 x 320 - 2 - reference system - adaptation Designation SAV no. - A x B - control points - reference system - adaptation Low weight and high rated holding force Wear layer of the pole plate: 2 mm Rated holding force: 120 N/cm2 Tapped holes for stop bars and stop brackets possible Low magnetic field Clamping holes on the top surface on request
