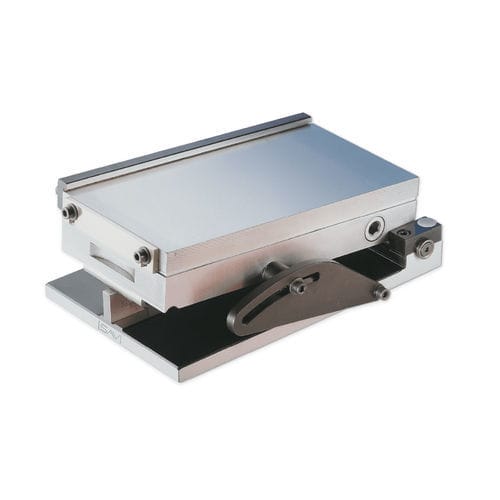

Sine table magnetic chuck 245.03

for grinding

The angles are determined using the gauge blocks using the sinusoidal principle. Clamping is achieved with the upper bearing shell halves. With sine table base unit made of steel. Hardened, burnished and precision-ground. Maximum precision with flat design. Standard design with permanent magnetic chuck. Delivered in a wooden storage box. With sine table with degrees/minutes in mm, precision length stop and transverse stop bar. Precision sine table SAV 245.03 - 450 Designation SAV no. - A Angle accuracy: ±5 arc sec Plane parallelism: ±0.005/100 mm Gauge block at 0°: 3 mm Swivelling range: 0° to 30° Rated holding force: 90 N/cm2 Pole pitch: 1.9 mm Magnetic field height: 6 mm Wear layer of the pole plate: < 8 mm
