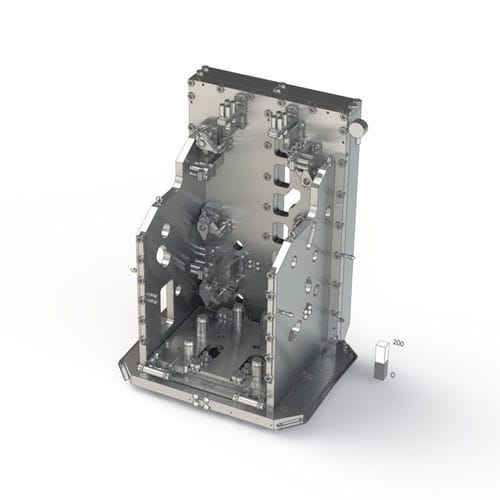

Hydraulic clamping system 9333-00

vacuumworkpiece

Our product range of stationary workholding involves mainly special solutions that have been developed specifically for the requirements of our customers. Thus, mostly individual workpiece clamping systems as well as solutions of vacuum and hydraulic clamping technology are implemented. But there are also standards in our portfolio, such as precision pull-down clamps, sine bar clamping tables for grinding and eroding applications and a large selection of pallets. An example of the implementation of a cylinder crankcase (engine component for truck 13l displacement cast steel) is this device with the following features: Finish machining OP60 on 4-axis machining center (horizontal machining) Accuracy ± 0.01 mm Hydraulic tension Airsensoring on all workpiece supports Facilitates manual loading due to movable workpiece slide
