Permanent magnet magnetic chuck 244.06

circularradialfor grinding

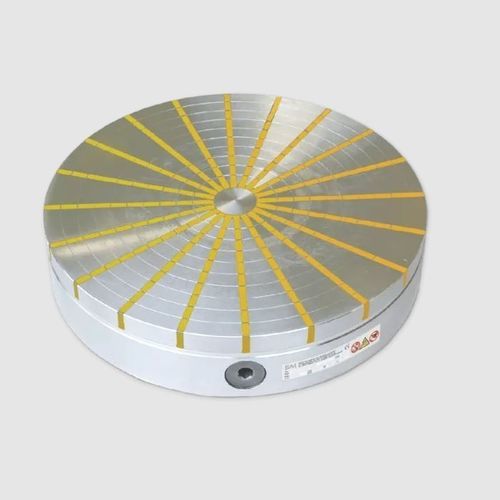

Permanent magnetic circular chucks With radial pole pitch For round and ring-shaped workpieces. High magnetic force. Concentric rings allow easy alignment of workpieces. Magnetic field continuously adjustable up to ø 300 mm. Through hole possible up to max. diameter D. Standard version without through hole at the centre. Diameter C is magnetically not active. Available with flange on request (see SAV 248.90 to 248.95). Larger diameters with T-grooves on request. Pole gap with brass pigment. Rated holding force: 100 N/cm2 Wear thickness of the top surface: 5 mm (for A = 100 to 300 mm) 10 mm (for A = 350 to 400 mm) Geometrically balanced: G 6.3
