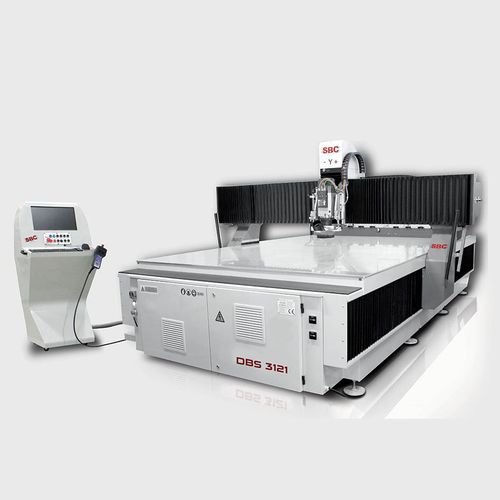

3-axis CNC milling machine DBSverticalfor woodfor composites
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Machined material
- for wood, for composites
- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
7.5 kW
(10.2 hp)
Description
The DBS milling center is a fully bellow-protected DBE version, designed for machining extremely dusty technical parts such as composites, but also works with plastics, wood, aluminium, brass ....
In these 4 sizes, the basic configuration includes :
A 7.5 Kw, 24,000 RPM electro spindle with automatic tool change by ISO30 spindle taper , ER32 collet chuck, max. tool diameter 20 mm (0.78 in)
A tool magazine for 10 tools with tool touch probe
A vacuum table for parts holding
A pneumatic lifting suction system for chip removal
Minimal quantity lubrication (MQL)
DBS can be configured with various options to meet your production needs
VIDEO
Catalogs
DBS
1 Pages
