GNSS inertial navigation system Ellipse-D
miniaturewith integrated dual-antenna GPSfor UAVs

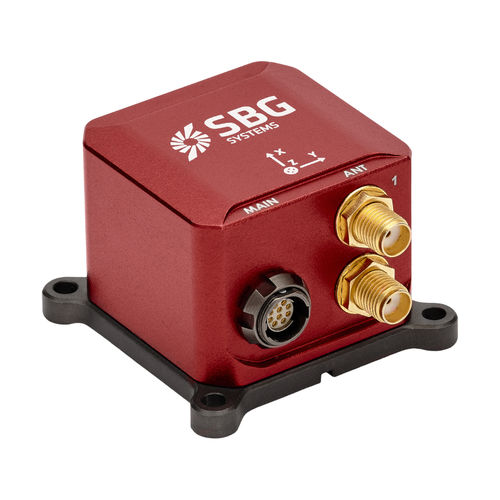

GNSS inertial navigation system - Ellipse-D - SBG Systems - miniature / with integrated dual-antenna GPS / for UAVs
GNSS inertial navigation system - Ellipse-D - SBG Systems - miniature / with integrated dual-antenna GPS / for UAVs
GNSS inertial navigation system - Ellipse-D - SBG Systems - miniature / with integrated dual-antenna GPS / for UAVs - image - 2
Add to favorites
Compare this product

Go to the SBG Systems website for more information

Characteristics

Options
GNSS, miniature, with integrated dual-antenna GPS, for UAVs, with integrated GPS, ITAR-free
Mounting
box

Description

Dual Antenna RTK INS Ellipse-D is the smallest Inertial Navigation System integrating a Dual-antenna, multi-band GNSS receiver, capable of delivering precise heading as well as centimeter level position accuracy in the most challenging GNSS conditions. It provides attitude, heading, heave as well as navigation outputs. 0.05° Roll and Pitch (RTK) 0.2° Heading (Dual Antenna RTK GNSS) Immune to magnetic distortions 1 cm RTK GNSS Position Tiny OEM module available Post-processing with Qinertia PPK Software Full Development ROS Driver
