Analysis software Qinertia Pro

post-processingGNSS reference network

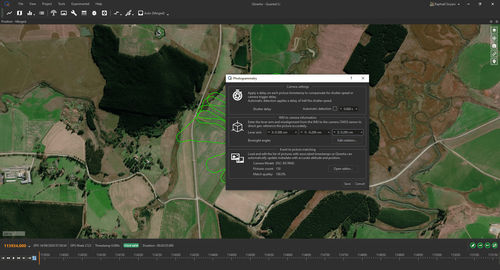

Your Full-featured INS/GNSS Post-processing Solution Want to improve your navigation data, to access further analysis, to fix some outages in your trajectory? Qinertia PRO gives access to post-processing to all SBG sensors, in all applications/environments. Qinertia will save your day! All SBG sensors and supported Third-party IMUs All applications All processing: INS/GNSS and GNSS Only Photogrammetry: geotag image with precise position and orientation + 8,000 Base Stations always up-to-date After the mission, Qinertia gives access to offline GNSS data from more than 8,000 base stations located in 164 countries - and always up-to-date. Tightly Coupled Post-processing Advanced tight coupling algorithm has been designed by SBG Systems to deliver the highest accuracy and maximize RTK availability. Virtual Base Station (VBS) When you are far from a GNSS base station, Qinertia can automatically generate a Virtual Base Station (VBS). This VBS is created optimally for your trajectory in order to achieve the best position accuracy. Image geo-tagging for Photogrammetry Qinertia simplifies the photogrammetry workflow by adding precise position and orientation to JPG images. All images can be previewed and easily edited before export. Qinertia accepts DJI P4 RTK native format and Matrice RTK with payload Zenmuse P1. Qinertia PPK software is fully compatible with RTK GNSS capable UAVs and photogrammetry suites including PIX4D, Agisoft, UAS Master, etc.
